Electric outboards · 12 · 20 · 40 kW
96 V eSSA outboards with integrated steering and power trim. Up to 40 kW of continuous electric power.
40 kW
Continuous power on the X40.
88.2%
Powertrain efficiency on the X40, with closed-loop liquid cooling.
65%
Up to 65% lighter than combustion engines of similar output.
The models
Every model and variant below is read live from the Dealer Gateway.

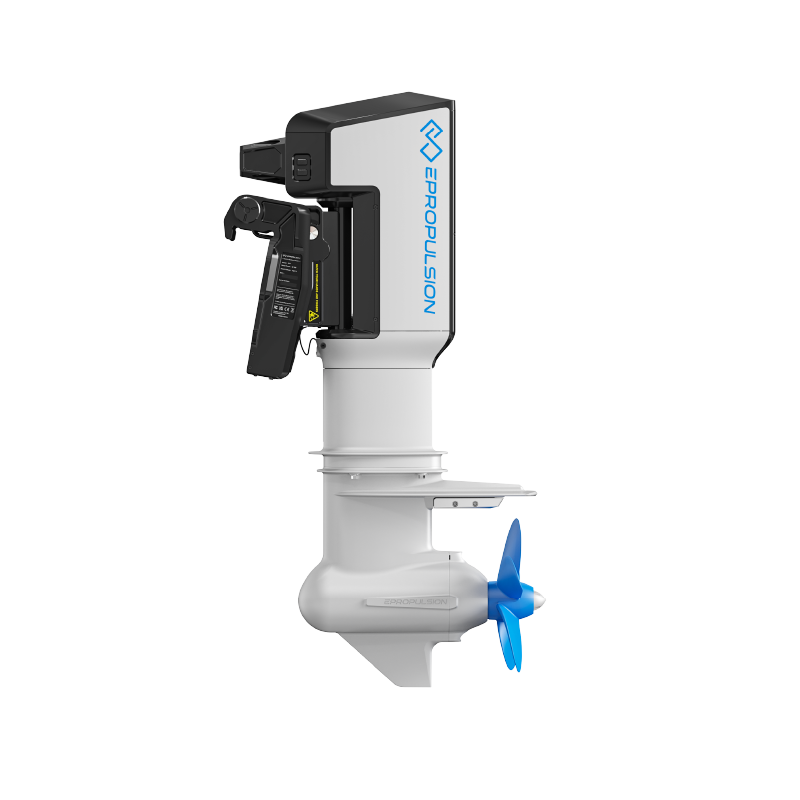

eSSA, 96V platform, 12KW, S-Shaft,Compact & Fully integrated design, Electric Steering System, Advanced Driving Sssistance Functions and ePropulsion…

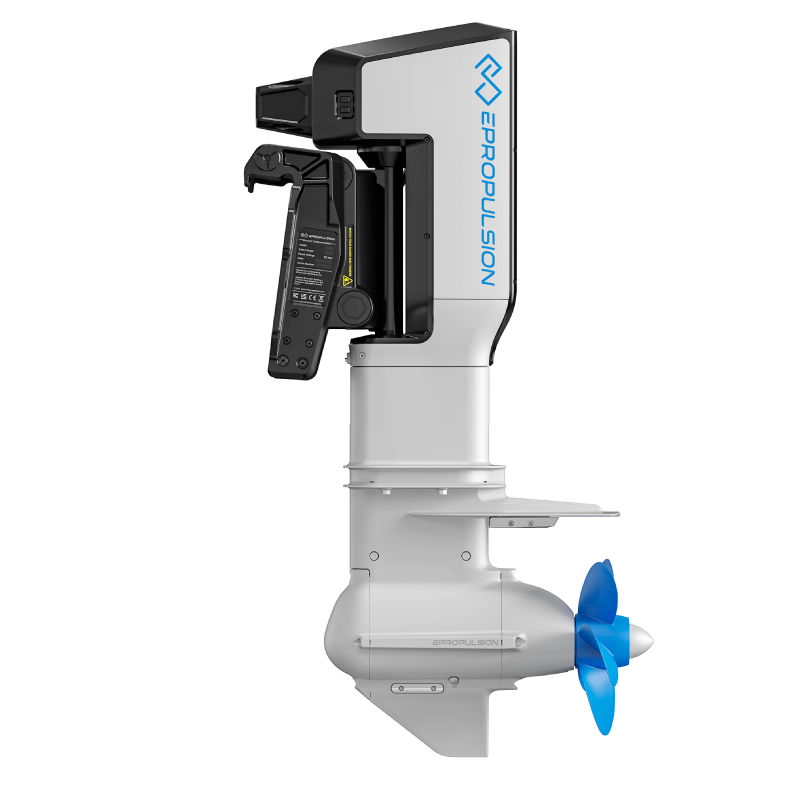

eSSA, 96V platform, 20kW, L-Shaft,Compact & Fully integrated design, Electric Steering System, Advanced Driving Assistance Functions and ePropulsion…

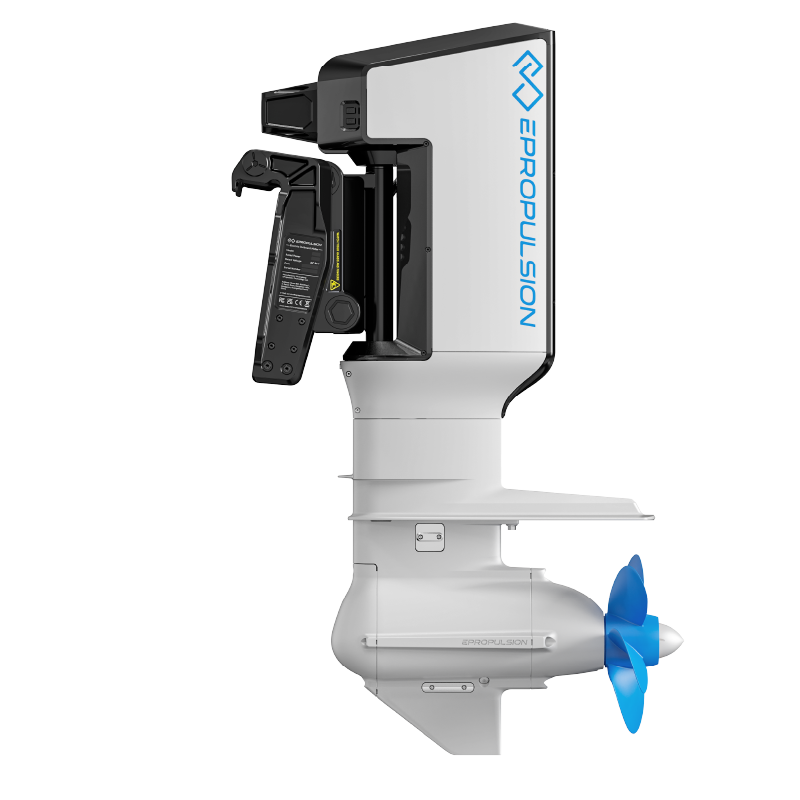

eSSA, 96V platform, 40KW, L-Shaft, Compact & Fully integrated design, Electric Steering System, Advanced Driving Assistance Functions and ePropulsion…
In 3D
Drag to rotate, scroll or pinch to zoom.
Specifications
Where variants of a model differ, the range across them is shown.
| Specification | X12 | X20 | X40 |
|---|---|---|---|
| Continuous power | 12 kW | 20 kW | 40 kW |
| Boost power | 16 kW | 30 kW | 60 kW |
| Nominal voltage | 96 V | 96 V | 96 V |
| Static thrust | 1,750 kgf | 2,800 kgf | 4,600 kgf |
| Powertrain efficiency | 86% | 90% | 90% |
| Cooling | Closed loop liquid cooling | Natural cooling | Natural cooling |
| Weight | 48 kg to 50 kg | 79 kg to 81 kg | 104 kg to 106 kg |
| Transom height, from | 30 mm to 44 mm | 30 mm to 47 mm | 30 mm to 47 mm |
| Transom height, to | 44 mm to 55 mm | 47 mm to 60 mm | 47 mm to 60 mm |
Boat database

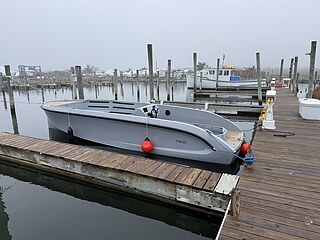

X-Series Fishing Boat / Jon Boat · 6.5 m
X-Series Workboat / Utility · 4.88 m
X-Series Powerboat (Open / Console) · 10.67 m
X-Series Where to buy
Leave your details and the nearest ePropulsion dealer or distributor will contact you about sea trials, fitting and prices.
